Flipper has released the full technical specifications of the Flipper One, noting that since the device is under active development, specifications may change.
Some interesting highlights:
Main CPU — RK3576
Low-power MCU — RP2350B
RAM: 8 GB LPDDR5

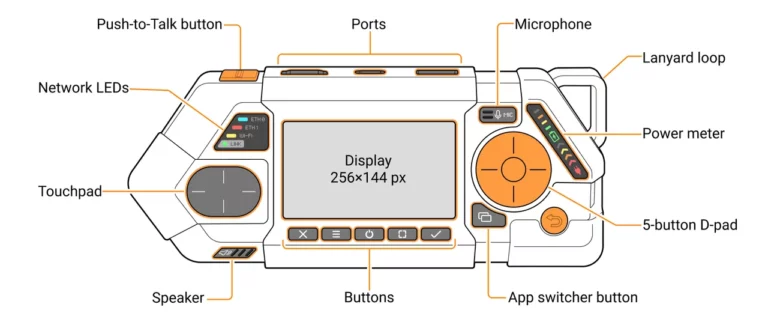

Monochrome LCD display
- Resolution: 256 × 144 pixels<
- Grayscale: 64 levels (6-bit)
- Interface: QSPI (driven by MCU)
Ports
- USB-C1: USB 3.1 (5 Gbps), DisplayPort Alt Mode, USB Power Delivery charging
- USB-C2: USB 3.1 (5 Gbps), host only, power out
- USB-A: USB 3.1 (5 Gbps), host only, power out
- HDMI out: full-size, v2.1, CEC support, 4K @ 120 Hz
- Ethernet: 2× RJ45, Gigabit
- 3.5 mm audio jack: stereo out and microphone input (TRRS)
- MicroSD card slot
- SIM card slot: Nano SIM (4FF), passively connected to M.2 port
Battery capacity: 7000 mAh ⚠️ (not final)
Wi-Fi & Bluetooth, M.2 expansion port
See all the details here.
